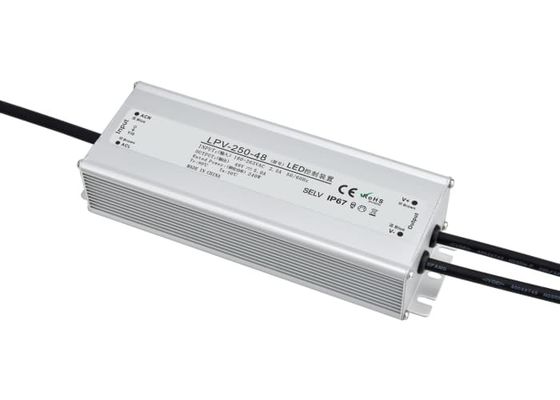

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply

  • IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
  • IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
  • IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply
Lugar de origen Shenzhen, China
Nombre de la marca Miracle Bean
Certificación CE ROSH EMC
Número de modelo XH-LPV-250W
Cantidad de orden mínima 1 pieza
Precio negotiate
Detalles de empaquetado Caricatura o madera
Tiempo de entrega 5-15 días
Condiciones de pago T/t, unión occidental
Capacidad de la fuente 10000 piezas por mes

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Artículo Nombre Fuente de alimentación Material de concha Aleación de aluminio
Clase IP IP67/IP65 temperatura de pertación -20 ° C a 60 ° C
Tamaño del producto 205*69*43 mm certificaciones CE/FCC/ROHS
potencia UTPUT 250W Color Plata
Protección Cortocircuito/temperatura excesiva/sobre carga Eficiencia 91%
Resaltar

Fuente de alimentación llevada impermeable IP67

,

Fuente de alimentación de conmutación de 230 VAC

,

Fuente de alimentación de 12V 24V 48V 250W
Deja un mensaje
Descripción de producto

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply


Product Description


Modle XH-LPV-250W
Output current range 12V/24V/48V
DC output power 250W
AC Input Current

2.5A/230VAC
Store temperature and humidity -40~+85°10-95% RH
Working temperature and humidity -20~+60 centigrades 20-90% RH non-condensing(waterproof)
Dimesion

205*69*43mm(L*W*H)
Efficiency

91%
Weight

0.85kg



Description

  The XH-LPV-250W Series is a waterproof AC-to-DC LED driver power supply designed with constant voltage and constant power output. It operates on a wide AC input voltage range of 180~264VAC and offers a full range of output options including 12V, 24V, 36V, and 48V.


  With a conversion efficiency of up to 93%, it features a fan-less design that operates via natural air convection cooling within a case temperature range of -20°C to +60°C. The metal housing and high IP65/IP67 protection rating make the XH-LPV-250W Series suitable for both indoor and outdoor applications. It is equipped with a long-life aluminum electrolytic capacitor rated at 105°C.

The XH-LPV-250W comes with comprehensive protection functions and a 5G vibration resistance capability. It complies with safety regulations such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting, providing a cost-effective solution for various LED lighting applications.


Key Advantages

  • Constant Voltage & Constant Power Mode Output.
  • 180~264VAC – Wide AC input voltage range.
  • Protection Features: Short circuit / Overload / Overvoltage / Over-temperature protection.
  • Natural Air Cooling.
  • Fully Enclosed Aluminum Housing.
  • Full Potting, meets IP65/IP67 protection rating, suitable for both indoor and outdoor installation.
  • Suitable for dry, humid, and rainy environments.
  • 100% Full-Load Burn-in Tested.
  • High efficiency, long lifespan, and high reliability.
  • 3-year warranty
Our Advantages
  • We have more than 20 years’ experience
  • More than 100 foreign customers which have cooperated with our company for more than 3 years
  • Small MOQ, helping you to cooperate with our company step by step.
  • Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
  • Solving the problems for customers directly.



Our Services

  • Replied in 24hrs
  • Answer all your enquires in fluent English
  • OEM & ODM are welcome
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private informaton
  • Provide lifelong warranty
  • Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.

FAQ


1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.

2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available


4. Q: How long is the warranty period?

A: 3 Years


5. Q: How long is the delivery time?

A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.


Led Power Supply Show

IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply 0
IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply 1
IP67 Waterproof Input 230VAC Switching Power Supply Output 12V/24V/48V 250W LED Power Supply 2
